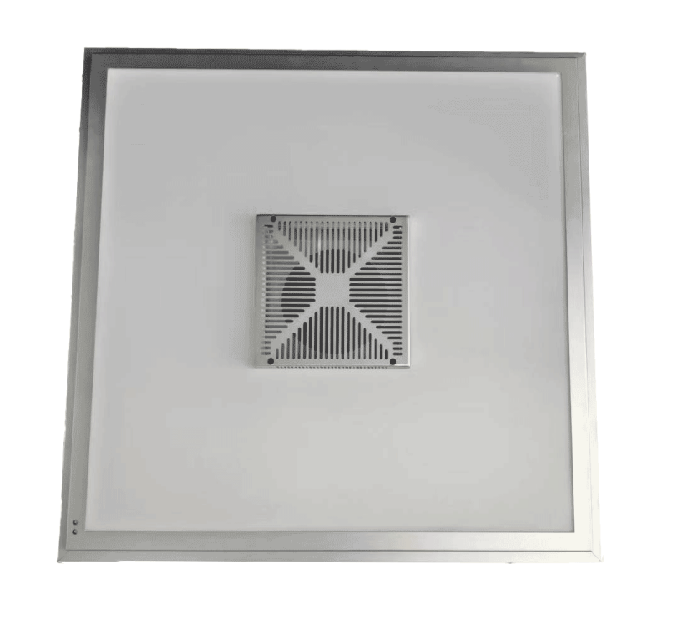

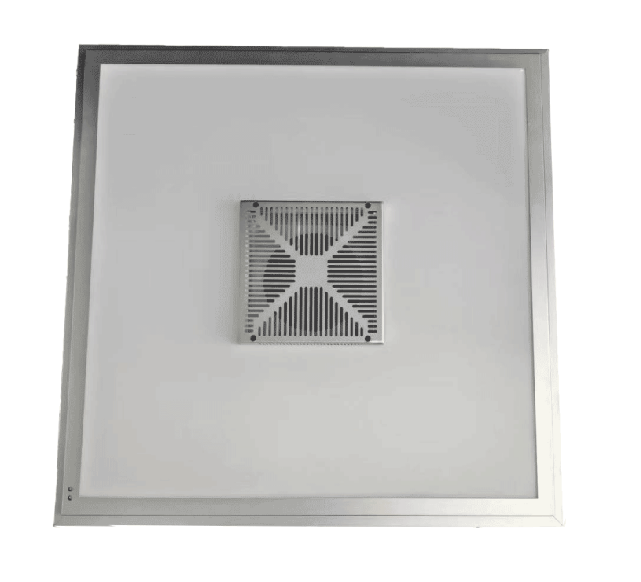

Indoor air disinfection and purification lamp-pbd-600
Product name:High-efficiency photocatalyst disinfection, lighting and purification all-in-one machine
brand:Allshine
Available Model:PBD-600
Size(L*W*H)mm:600*600*100
Suitable place for installation:Various offices and conference rooms
Installation method:Ceiling
Rated Voltage(V):220V
Rated frequency(Hz):50
Application area(m²): 15-20
brand:Allshine
Available Model:PBD-600
Size(L*W*H)mm:600*600*100
Suitable place for installation:Various offices and conference rooms
Installation method:Ceiling
Rated Voltage(V):220V
Rated frequency(Hz):50
Application area(m²): 15-20
Product overview
Model | PBD-600 | More new productd |
Product size(mm) | 600*600*100 | More new products for scene applications Coming soon Please stay tuned |
Installation | Ceiling | |
Application | Office, conference room, emergency room, ward, outpatient clinic, toilet, dormitory | |
Rated voltage（V） | 220 | |
Rated frequency（Hz） | 50 | |
Disinfection and purification mode | Powerful/Comfortable/Sleep | |
Disinfection and purification factor | hydroxyl radical | |
Operating power（W） | 65-75 | |
Lighting power (W) | 40 | |
Rated circulation air volume(m³/hr) | 324 | |
Applicable area（m²） | 12-20 | |
Operating temperature | -15°C-50°C | |
Main material | aluminum alloy | |
Surface treatment process | Aluminum alloy brushed + high temperature paint | |
Customizable exterior color | White |

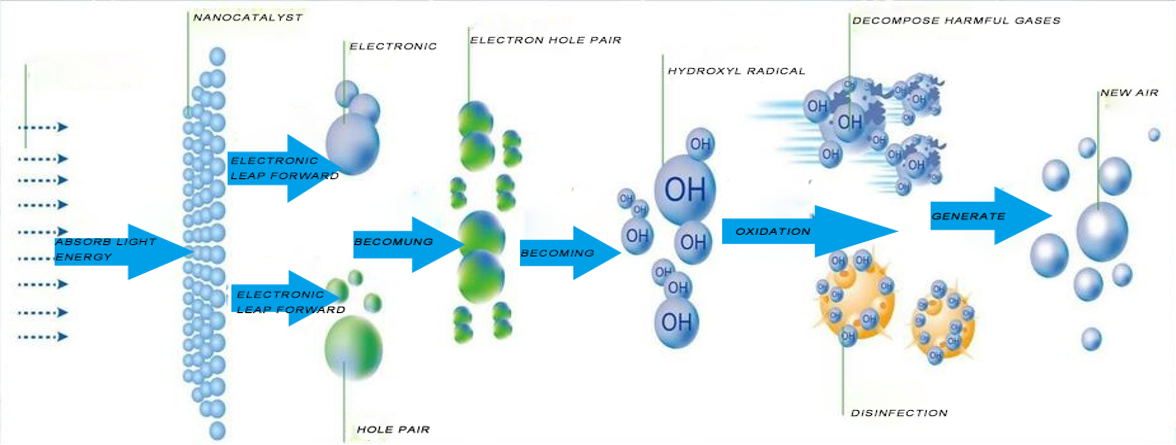

Working principle diagram
Technician breakthroughs

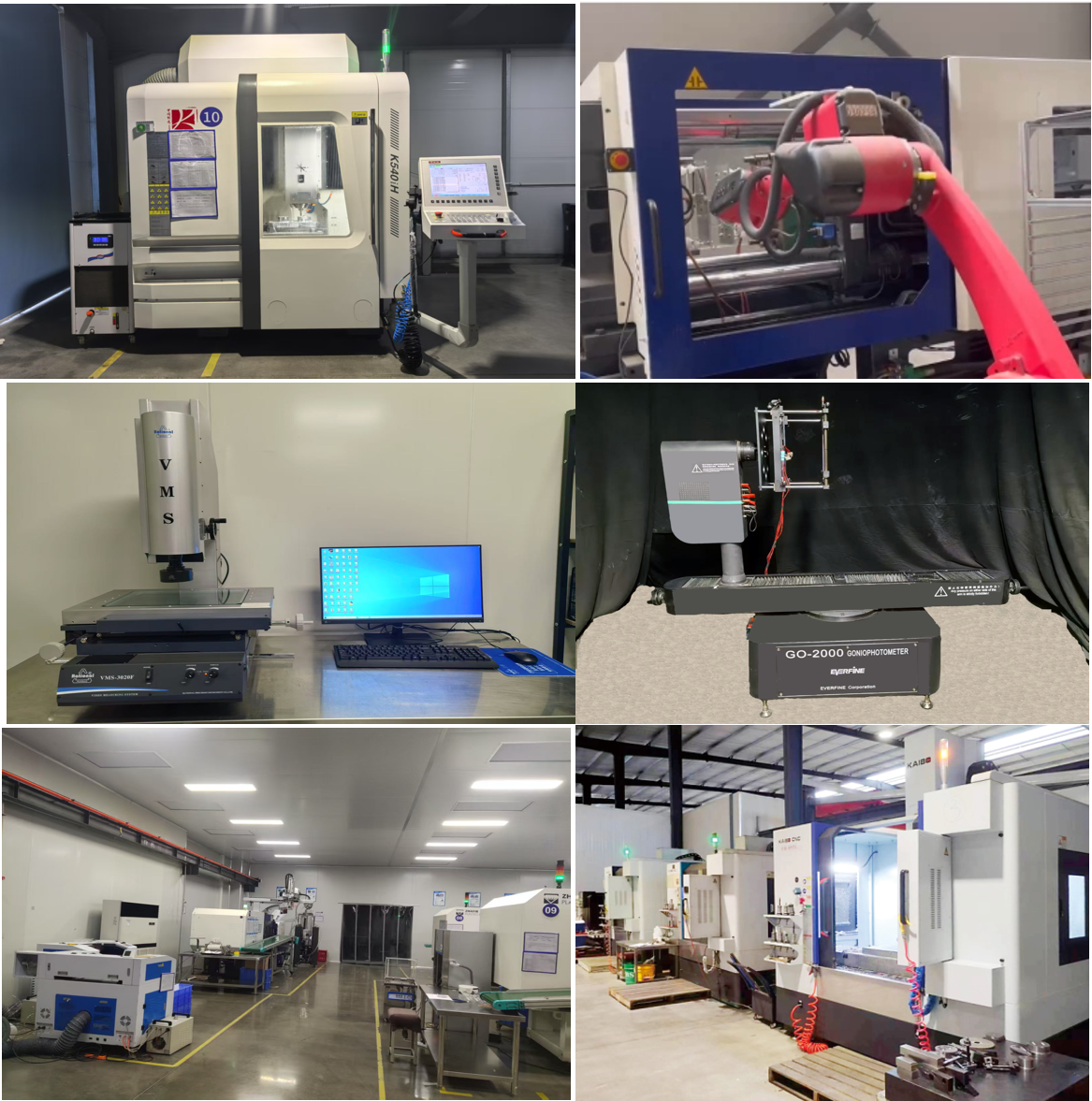

Workingshop

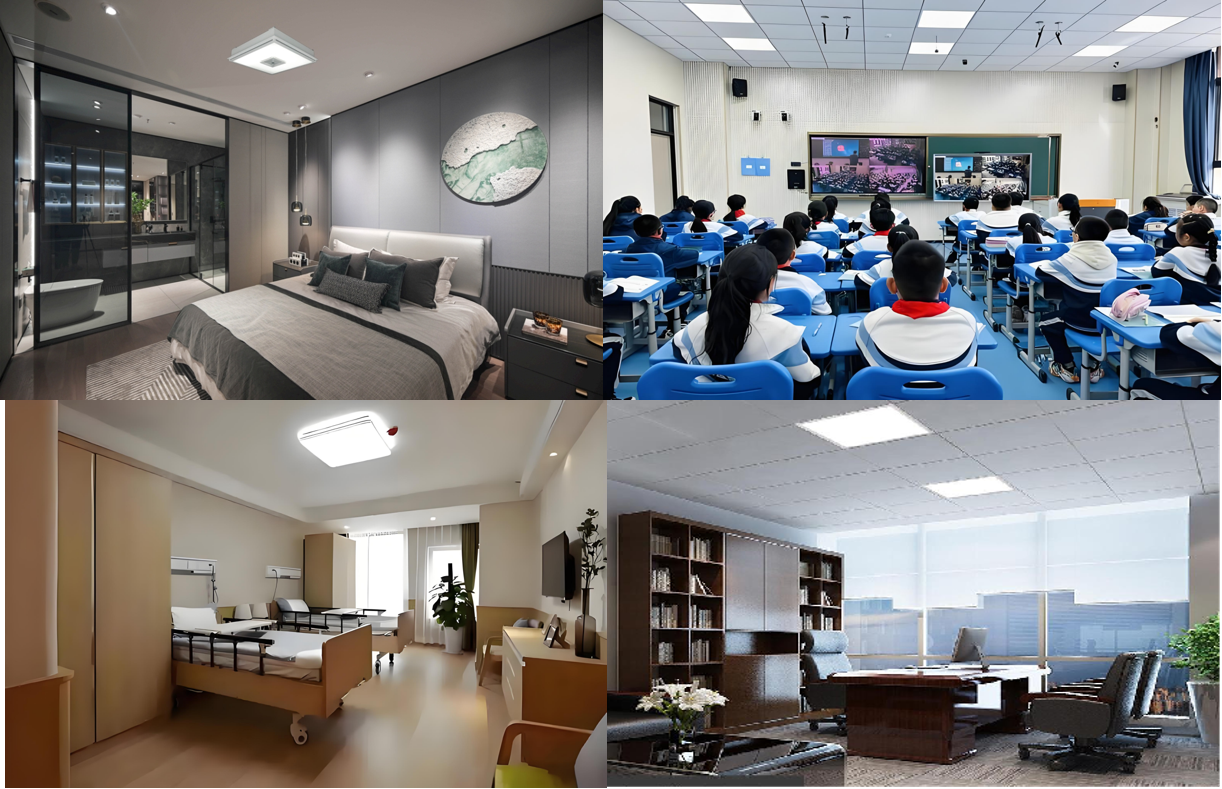

Application
Packaging&Shipping:
1. Trading Terms: EXW/FOB/CIF/DDU/DDP, etc.
2. Lead time:1-3 days for sample orders, 5-15 days for mass orders.
3. Port: Chendu/Guangzhou/Others.
4. Delivery: by Air/Sea/Express.
5. Payment: 30% T/T in advance, the balancing will be paid before shipment.
